Parts / Controller box base, version D (combined pane pack)
Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

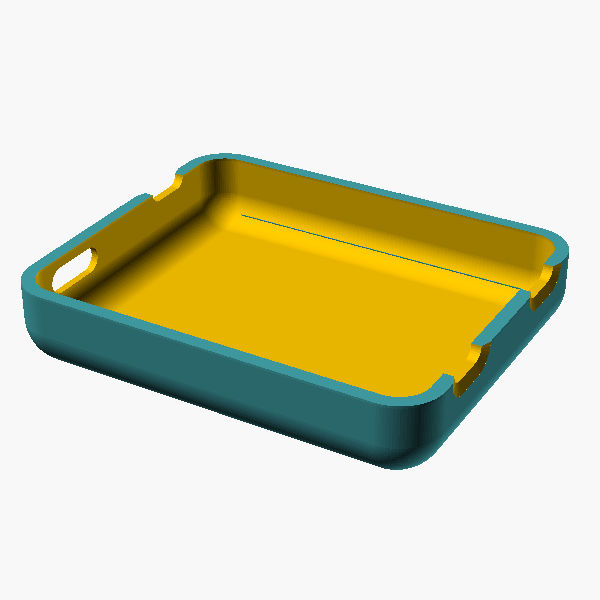

Controller box base, version D (combined pane pack) primary
Board and drivers only: the cell lives in the pane pack, so the box is 10 mm lower than B/C. The flat 4-net lead from the pack (PV+, BAT+, GND, NTC) enters through the side exit.
- File
hardware/stl/ebox_D_pack_base.stl- Bounding box
- 57.59 × 47.59 × 11.40 mm (X × Y × Z, as exported; Z up from the bed)
- Volume
- 7.29 cm³; ≈ 9.3 g if printed solid in PETG (real mass depends on walls and infill)
- Mesh
- 12,050 triangles
- Material
- PETG
- Layer
- 0.2 mm
- Walls / infill
- 3 walls, 15 %
- Orientation
- Base bottom down.
- Supports / brim
- None.
- Quantity
- 1 per 2 heads
- Versions
- D
Print settings are starting points from ASSEMBLY.md and the print plan, not values tested on this design. Dimensions that depend on the knob, rod or clip are estimated from photo, not caliper.
