Parts / Controller box lid, version D
Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

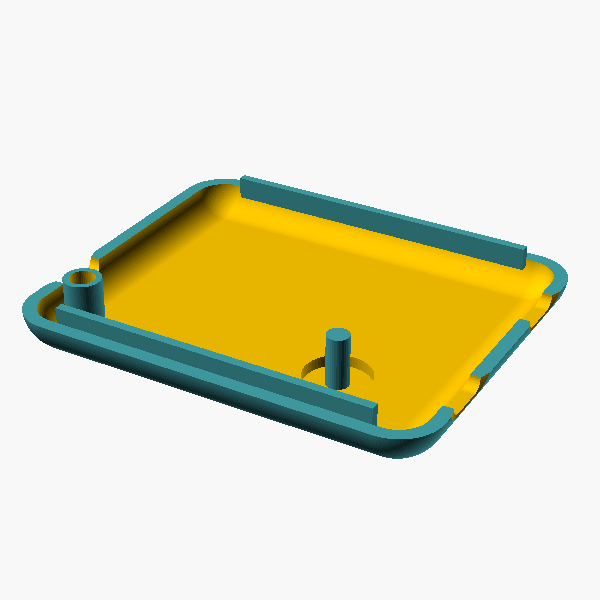

Controller box lid, version D primary
Same lid style as A/B/C, for the lower D base.
- File
hardware/stl/ebox_D_pack_lid.stl- Bounding box
- 57.55 × 47.55 × 8.00 mm (X × Y × Z, as exported; Z up from the bed)
- Volume
- 5.66 cm³; ≈ 7.2 g if printed solid in PETG (real mass depends on walls and infill)
- Mesh
- 11,636 triangles
- Material
- PETG
- Layer
- 0.2 mm
- Walls / infill
- 3 walls, 15 %
- Orientation
- As exported, top on the bed.
- Supports / brim
- None.
- Quantity
- 1 per 2 heads
- Versions
- D
Print settings are starting points from ASSEMBLY.md and the print plan, not values tested on this design. Dimensions that depend on the knob, rod or clip are estimated from photo, not caliper.
