Parts / Combined pane pack, north-window option (D)
Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

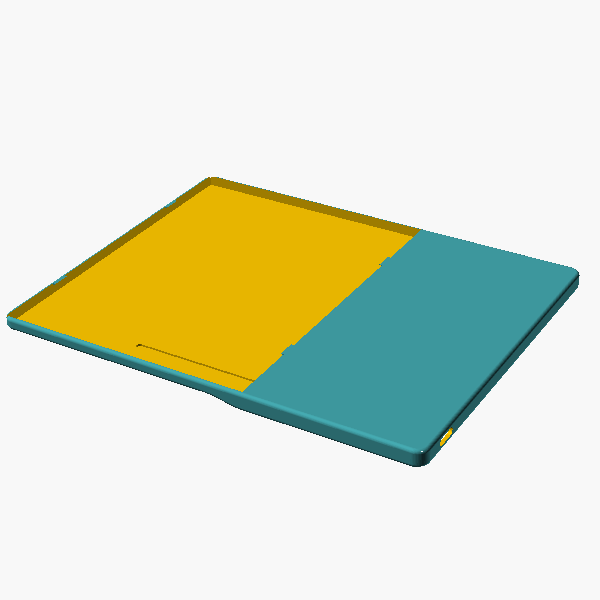

Combined pane pack, north-window option (D) option
Same pack for a thinner 4.6 mm, larger-capacity low-temperature pouch (5.9 mm overall). Only for north or shaded windows: that cell's listed upper limit is lower than the summer cell temperature estimated for sunny windows.
- File
hardware/stl/pane_pack_combined_D_north.stl- Bounding box
- 144.40 × 117.80 × 5.90 mm (X × Y × Z, as exported; Z up from the bed)
- Volume
- 13.74 cm³; ≈ 14.7 g if printed solid in ASA (real mass depends on walls and infill)
- Mesh
- 6,864 triangles
- Material
- ASA, white
- Layer
- 0.2 mm
- Walls / infill
- 3 walls, 100 %
- Orientation
- Back down, as the D pack.
- Supports / brim
- None.
- Quantity
- -
- Versions
- D
Print settings are starting points from ASSEMBLY.md and the print plan, not values tested on this design. Dimensions that depend on the knob, rod or clip are estimated from photo, not caliper.
